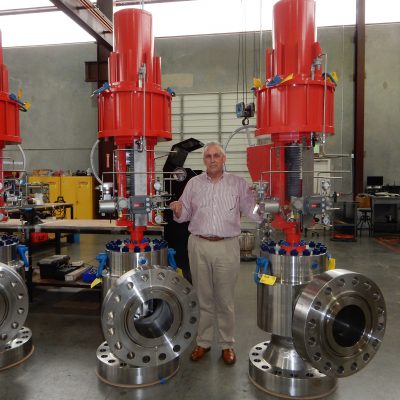

Angle Control Choke Valves

N-Line Valves manufacture a range of Manual and Actuated angle choke valves for Water Injection, Gas Lift, Wellhead, Steam Injection, Shale Gas  and other Process Control applications. Valves bodies are available in both ANSI and API 6A /17D design standards.  Complete valve and actuator are monogrammed to API 6A or 17D.

A range of Multi-stage trim designs are available for applications where Cavitation, Noise and sand erosion are a problem. Trims are also customer design to control the complete flow conditions as required by process requirement.

A Bi-Directional Flow design is available for Steam Injection and Crude production.



Sizes : 1 inch to 16 inches
Rating : ANSI 150# to 4500# ,
API 3000# to 15,000#
Actuators Type: Electric,
Pneumatic Linear. Pneumatic Stepping,
Hydraulic Linear, Hydraulic Stepping
90 Degree Angled Pneumatic or Hydraulic
Material : EE, FF, BB, DD, HH
Trim Design : External Sleeve
Plug and Cage
Multi-Stage,
Hybrid Cage
Hi-Flow Well Start-up Cage
Sand Trim
Characteristic : Modified Equal Percent
Linear
Bi-Linear
Quality : API 6A PSL Level 1 to 4, PR 2, Q1 Monogramed
PED CE,  Independent Design Review, IVB, GOSH
